Datasheet

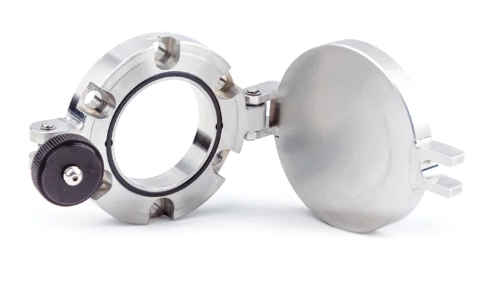

Access Door
For those prioritizing robust containment without compromising accessibility, our Solid Add-A-Doors offer the singular and effective solution. These doors function as a secure, solid access entry while ensuring containment integrity within your vacuum system when not in use.
-
High Vacuum rating of 1×10e-8 torr
-
Temperature maximum of 150°C
-
Do not expose to pressure above 1 atmosphere
Materials:
-
Body: 304L Stainless Steel
-
Seal: FKM
-
Viewing Window: 7056 Borosilicate Glass
-
Fastening Knob: Aluminum
-
|

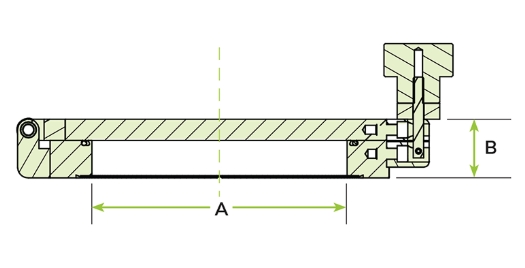

Reference Number |
A |
B |
Flange |
|
AD-CF275 |
1.5" |
0.94" |
CF275 |
|
AD-CF450 |
2.5" |
1.68" |
CF450 |
|
VPAD-CF600-3.8 |
4.02" |
2.16" |
CF600 |
|
VPAD-CF800-6.0 |
6" |
2" |
CF800 |
|
VPAD-CF1000-6.0 |
7.88" |
2.1 |
CF1000 |
-
High Vacuum rating of 1×10-8 torr
-
Temperature maximum of 150°C
-
Do not expose to pressure above 1 atmosphere
