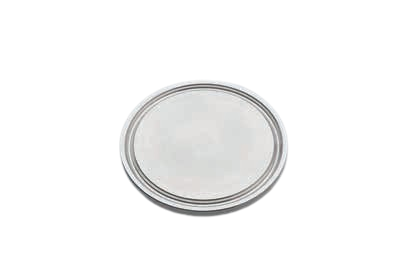

sTeRIc clamp blanking plate, ISO 2852
產品詳細資料
Applications
- Applications: food, dairy, beverage, pharmaceutical and biotech
- Vacuum 10E-7 mbar for overpressure up to 10 bar
- Fully sterilizable
- Extremely fine surface rougness for ultra clean applications
- Wide temperature range -200…+200 degC (special seals / clamps)
- Duran® available for non UV applications
- Quartz available for high UV transmission
- Stainless steel blanking plates (316L)
| sTeRIc clamp™ blanking plate, ISO 2852 | |||||||

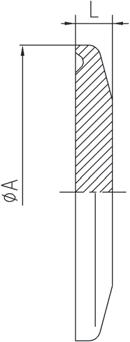

| Size | A | L | |||||
| 10 | 25 | 5.5 | |||||
| 15 | 34 | 5.5 | |||||
| 25 | 50.5 | 6.4 | |||||
| 40 | 64 | 6.4 | |||||
| 50 | 77.5 | 6.4 | |||||
| 65 | 91 | 6.4 | |||||
| 80 | 106 | 6.4 | |||||
| Size | Stainless steel | Duran® | Quartz | ||||
| 10 | 32.010005.960.310 | ||||||
| 15 | 32.020005.960.320 | ||||||
| 25 | 32.025005.960.325 | 32.025007.960.725 | 32.025008.960.825 | ||||
| 40 | 32.040005.960.340 | 32.040007.960.740 | 32.040008.960.840 | ||||
| 50 | 32.050005.960.350 | 32.050007.960.750 | 32.050008.960.850 | ||||
| 65 | 32.065005.960.365 | 32.065007.960.765 | 32.065008.960.865 | ||||
| 80 | 32.080005.960.380 | 32.080007.960.780 | 32.080008.960.880 | ||||
