KF Blank flange
產品詳細資料

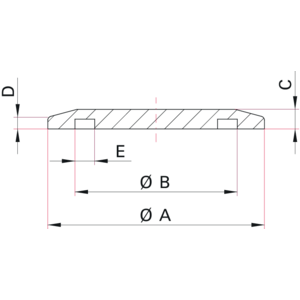

| Parts NO. | Flange Ref. | Material | A | B | C | D | |||||||
| 0-BL-N-10-S | KF10 | 304 S.S. | 30 | 5 | 12.2 | 2.5 | |||||||
| 0-BL-N-16-S | KF16 | 304 S.S. | 30 | 5 | 17.2 | 2.5 | |||||||
| 0-BL-N-25-S | KF25 | 304 S.S. | 40 | 5 | 26.2 | 2.5 | |||||||
| 0-BL-N-40-S | KF40 | 304 S.S. | 55 | 5 | 41.2 | 2.5 | |||||||
| 0-BL-N-50-S | KF50 | 304 S.S. | 75 | 5 | 52.2 | 2.5 | |||||||
| 0-BL-N-10-A | KF10 | Aluminum | 30 | 5 | 12.2 | 2.5 | |||||||
| 0-BL-N-16-A | KF16 | Aluminum | 30 | 5 | 17 | 2.5 | |||||||
| 0-BL-N-25-A | KF25 | Aluminum | 40 | 5 | 26 | 2.5 | |||||||
| 0-BL-N-40-S-A | KF40 | Aluminum | 55 | 5 | 41 | 2.5 | |||||||
| 0-BL-N-50-S-A | KF50 | Aluminum | 75 | 5 | 52 | 2.5 |
