11000 Series Stainless Steel Gate Valves
產品詳細資料

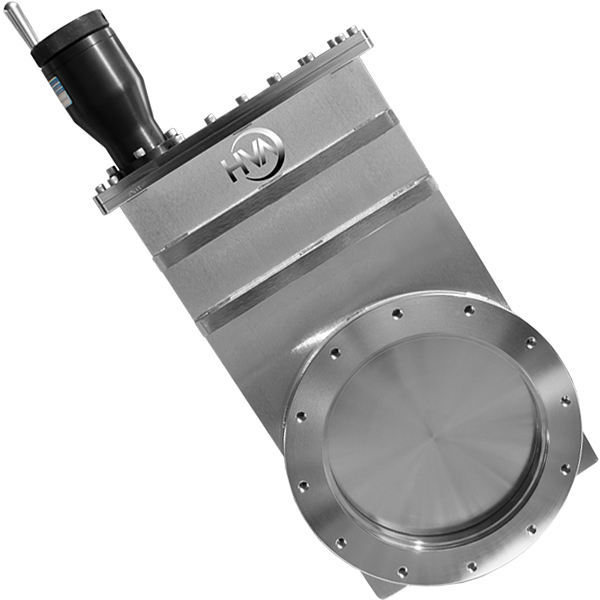

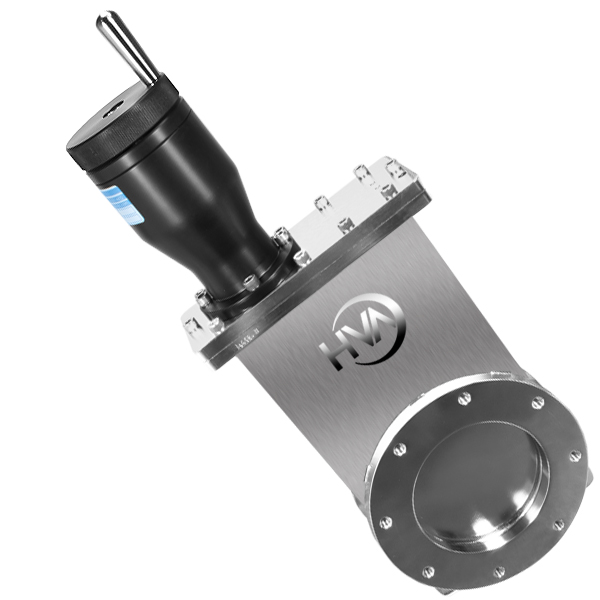

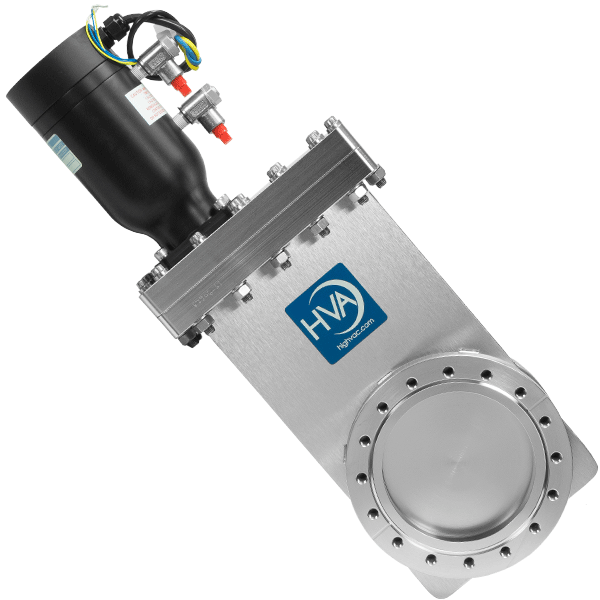

11000 Series Stainless Steel Gate Valves
The Standard Cycle Gate Valves are designed for high vacuum and ultra high vacuum applications.
All Flange Types Available - KF, ISO-F, ISO-K, CF-F, ASA and JIS
Multi Application Use - Pipings, Foreline pumps,Cryopumps, turbo pumps, ion pumps...
Low Vibration/Lowest Outgassing - Proprietary vacuum brazing process
UHV Systems - Metal sealed CF flanges allow 1 x 10e-10 mbar and temperatures of 200°C
Custom - Custom sizes and higher temperature options available
Size Range - Sizes range from 5/8” up to 40” (16mm - 1000mm)
Ordering Guides For Standard Sizes
| Pneumatic gate valve with Viton Bonnet | |||||
| includes 24VDC solenoid, for 120VAC solenoid, change 11211 to 1121(2). | |||||
| DN | Model number | Model number | Model number | Model number | |
| mm | inch | KF/ISO-K | ISO-F | CF-F (Metric) | CF-F (Imperial) |
| 16 | 0.625 | 11211-0063 | - | 11211-0064 | 11211-0060 |
| 40 | 1.50 | 11211-0153R | - | 11211-0154R | 11211-0150R |
| 50 | 2.00 | 11211-0203R | - | 11211-0204R | 11211-0200R |
| 63 | 2.50 | 11211-0256R | 11211-0253R | 11211-0254R | 11211-0250R |
| 80 | 3.00 | 11211-0306R | 11211-0303R | 11211-0304R | 11211-0300R |
| 100 | 4.00 | 11211-0406R | 11211-0403R | 11211-0404R | 11211-0400R |
| 160 | 6.00 | 11211-0606R | 11211-0603R | 11211-0604R | 11211-0600R |
| 200 | 8.00 | 11211-0806R | 11211-0803R | 11211-0804R | 11211-0800R |
| 250 | 10.00 | 11211-1006R | 11211-1003R | 11211-1004R | 11211-1000R |
| 320 | 12.00 | 11211-1206R | 11211-1203R | 11211-1204R | 11211-1200R |
| 350 | 14.00 | - | - | 11211-1404R | 11211-1400R |
| 400 | 16.00 | - | 11211-1603R | - | - |
| 500 | 20.00 | - | 11211-2003R | - | - |
| Manual gate valve with Viton Bonnet | |||||
| DN | Model number | Model number | Model number | Model number | |
| mm | inch | KF/ISO-K | ISO-F | CF-F (Metric) | CF-F (Imperial) |
| 16 | 0.625 | 11110-0063 | - | 11110-0064 | 11110-0060 |
| 40 | 1.50 | 11110-0153R | - | 11110-0154 | 11110-0150 |
| 50 | 2.00 | 11110-0203R | - | 11110-0204 | 11110-0200 |
| 63 | 2.50 | 11110-0256 | 11110-0253 | 11110-0254 | 11110-0250 |
| 80 | 3.00 | 11110-0306 | 11110-0303 | 11110-0304 | 11110-0300 |
| 100 | 4.00 | 11110-0406 | 11110-0403 | 11110-0404 | 11110-0400 |
| 160 | 6.00 | 11110-0606 | 11110-0603 | 11110-0604 | 11110-0600 |
| 200 | 8.00 | 11110-0806 | 11110-0803 | 11110-0804 | 11110-0800 |
| 250 | 10.00 | - | 11110-1003 | 11110-1004 | 11110-1000 |
| 320 | 12.00 | - | 11110-1203 | 11110-1204 | 11110-1200 |
| Pneumatic gate valve with Copper Bonnet (UHV) | ||||
| includes 24VDC solenoid, for 120VAC solenoid, change 11221 to 1122(2). |
| DN | Model number | Model number | |
| mm | inch | CF-F (Metric) | CF-F (Imperial) |
| 16 | 0.625 | 11221-0064 | 11221-0060 |
| 40 | 1.50 | 11221-0154R | 11221-0150R |
| 50 | 2.00 | 11221-0204R | 11221-0200R |
| 63 | 2.50 | 11221-0254R | 11221-0250R |
| 80 | 3.00 | 11221-0304R | 11221-0300R |
| 100 | 4.00 | 11221-0404R | 11221-0400R |
| 160 | 6.00 | 11221-0604R | 11221-0600R |
| 200 | 8.00 | 11221-0804R | 11221-0800R |
| 250 | 10.00 | 11221-1004R | 11221-1000R |
| 320 | 12.00 | 11221-1204R | 11221-1200R |
| 350 | 14.00 | 11221-1404R | 11221-1400R |
| Manual gate valve with Copper Bonnet (UHV) |
| DN | Model number | Model number | |
| mm | inch | CF-F (Metric) | CF-F (Imperial) |
| 16 | 0.625 | 11120-0064 | 11120-0060 |
| 40 | 1.50 | 11120-0154 | 11120-0150 |
| 50 | 2.00 | 11120-0204 | 11120-0200 |
| 63 | 2.50 | 11120-0254 | 11120-0250 |
| 80 | 3.00 | 11120-0304 | 11120-0300 |
| 100 | 4.00 | 11120-0404 | 11120-0400 |
| 160 | 6.00 | 11120-0604 | 11120-0600 |
| 200 | 8.00 | 11120-0804 | 11120-0800 |
| 250 | 10.00 | 11120-1004 | 11120-1000 |
| 320 | 12.00 | 11120-1204 | 11120-1200 |
