CR16 Bored Blank Weld Neck-Nonrotatable
產品詳細資料

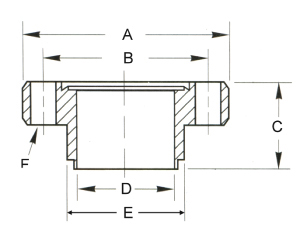

| Parts NO. | Material | A | B | C | D | E | F(*NO.) | Tapped bolt holes | |||||||||
| 0-BL-C16-B7N | 304 S.S. | 33.8 | 26.9 | 12.7 | 4.5 | 6.35 | 4.4*6 | - | |||||||||
| 0-BL-C16-B12N | 304 S.S. | 33.8 | 26.9 | 12.7 | 9.5 | 12.7 | 4.4*6 | - | |||||||||
| 0-BL-C16-B19N | 304 S.S. | 33.8 | 26.9 | 12.7 | 16 | 19.05 | 4.4*6 | - | |||||||||
| 0-BL-C16-B7N-S6 | 316 S.S. | 33.8 | 26.9 | 12.7 | 4.5 | 6.35 | 4.4*6 | - | |||||||||
| 0-BL-C16-B12N-S6 | 316 S.S. | 33.8 | 26.9 | 12.7 | 9.5 | 12.7 | 4.4*6 | - | |||||||||
| 0-BL-C16-B19N-S6 | 316 S.S. | 33.8 | 26.9 | 12.7 | 16 | 19.05 | 4.4*6 | - | |||||||||
| 0-BL-C16-B7N-T | 304 S.S. | 33.8 | 26.9 | 12.7 | 4.5 | 6.35 | M4*6 | Tapped bolt holes | |||||||||
| 0-BL-C16-B12N-T | 304 S.S. | 33.8 | 26.9 | 12.7 | 9.5 | 12.7 | M4*6 | Tapped bolt holes | |||||||||
| 0-BL-C16-B19N-T | 304 S.S. | 33.8 | 26.9 | 12.7 | 16 | 19.05 | M4*6 | Tapped bolt holes | |||||||||
| 0-BL-C16-B7N-T-S6 | 316 S.S. | 33.8 | 26.9 | 12.7 | 4.5 | 6.35 | M4*6 | Tapped bolt holes | |||||||||
| 0-BL-C16-B12N-T-S6 | 316 S.S. | 33.8 | 26.9 | 12.7 | 9.5 | 12.7 | M4*6 | Tapped bolt holes | |||||||||
| 0-BL-C16-B19N-T-S6 | 316 S.S. | 33.8 | 26.9 | 12.7 | 16 | 19.05 | M4*6 | Tapped bolt holes |
