Pneumateic angle valve-Tube End

Pneumatic angle valve Specifications:

•Pneumatic angle valve with bellows
•Operation/actuator: air to open, spring to close
•Viton sealing bonnet
•Pressure vacuum range : ATM to 1x10-9 torr
•Bakeout temperature:204°C max
•Material Exposed to Vacuum: Stainless Steel 304
•Operating Temperature: -29∘to +204°C
•Power: 110VAC

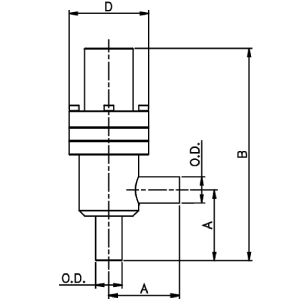

•Dimensions are in inches.

產品詳細資料

Part No.	Tube O.D.	A	B	C
O-AV-TE16-90-P	0.75	2	6.03	2.25
O-AV-TE25-90-P	1	1.88	5.77	2.25
O-AV-TE40-90-P	1.5	2.25	7.53	3
O-AV-TE50-90-P	2	3.25	10.17	3.5
