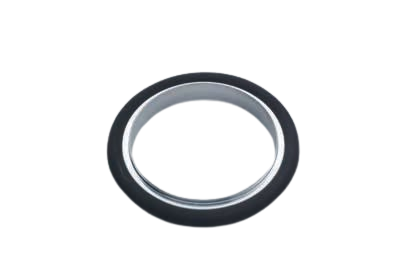

KF elastomer seals, inner center ring
產品詳細資料
Applications
- Carriers made of aluminium or stainless steel 316L
- Kalrez® o-ring for high temperatures up to 315 degC
- High temperature Viton® up to 200 degC available
- Vacuum up to 10E-9 mbar
- Inner center ring with intrinsic torque stop

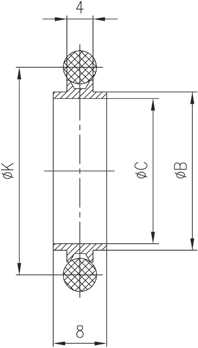

| KF elastomer seals, inner center ring | |||||||
| NW | B | C | K | ||||
| 16 | 17 | 16 | 25 | ||||
| 25 | 26 | 24 | 35 | ||||
| 40 | 41 | 40 | 49 | ||||
| 50 | 52 | 50 | 61.5 | ||||
| 63 | 70 | 68 | 80 | ||||
| Type NW | SUS / Kalrez® 4079 | Alu / Viton® | SUS / Viton® | ||||
| 16 | 34.016043.121.F16-iz | 34.016037.121.816-iz | 34.016032.121.316-iz | ||||
| 25 | 34.025043.121.F25-iz | 34.025037.121.825-iz | 34.025032.121.325-iz | ||||
| 40 | 34.040043.121.F40-iz | 34.040037.121.840-iz | 34.040032.121.340-iz | ||||
| 50 | 34.050043.121.F50-iz | 34.050037.121.850-iz | 34.050032.121.350-iz | ||||
| 63 | 34.063037.211.806 | 34.063032.211.306 |
