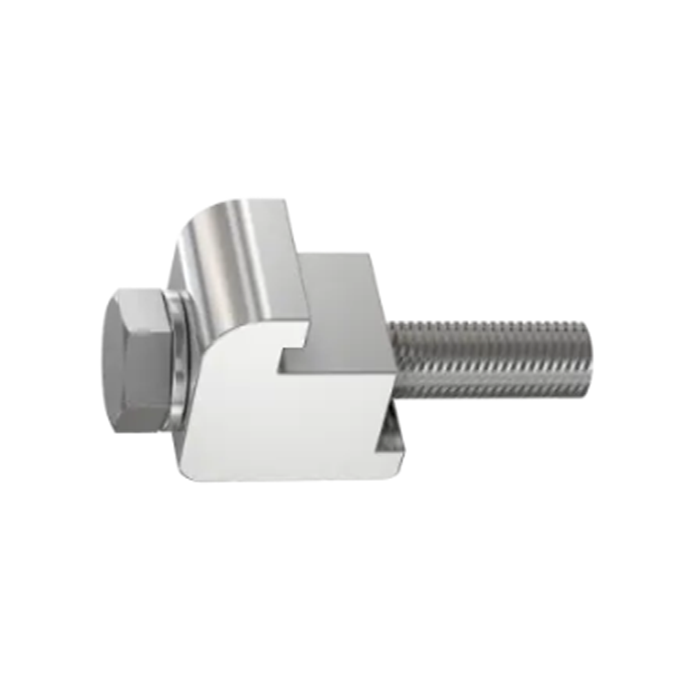

ISO Single wall clamps
產品詳細資料

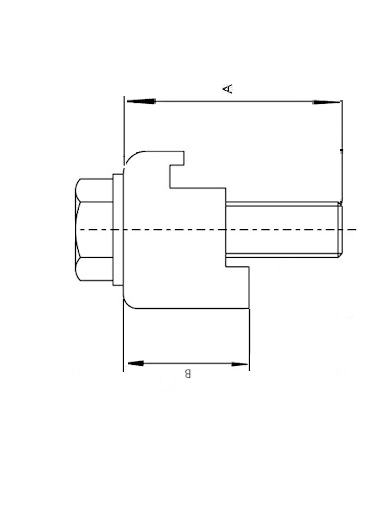

| Parts NO. | Flange Ref. | Material | Bolt Size | A | B | ||||||
| 0-SWC-I-63-S | ISO63-ISO100 | 304 S.S. | M8 | 35 | 23 | ||||||
| 0-SWC-I-160-S | ISO160-ISO250 | 304 S.S. | M10 | 35 | 23 | ||||||
| 0-SWC-I-320-S | ISO320-ISO500 | 304 S.S. | M12 | 50 | 30 | ||||||
| 0-SWC-I-63-AL | ISO63-ISO100 | Aluminum | M8 | 35 | 23.5 | ||||||
| 0-SWC-I-160-AL | ISO160-ISO250 | Aluminum | M10 | 35 | 23.5 | ||||||
| 0-SWC-I-320-AL | ISO320-ISO500 | Aluminum | M12 | 50 | 30 | ||||||
| 0-SWC-I-63-ZP | ISO63-ISO100 | Steel+Zn Plated | M8 | 35 | 23 | ||||||
| 0-SWC-I-160-ZP | ISO160-ISO250 | Steel+Zn Plated | M10 | 35 | 23 | ||||||
| 0-SWC-I-320-ZP | ISO320-ISO500 | Steel+Zn Plated | M12 | 50 | 30 |
