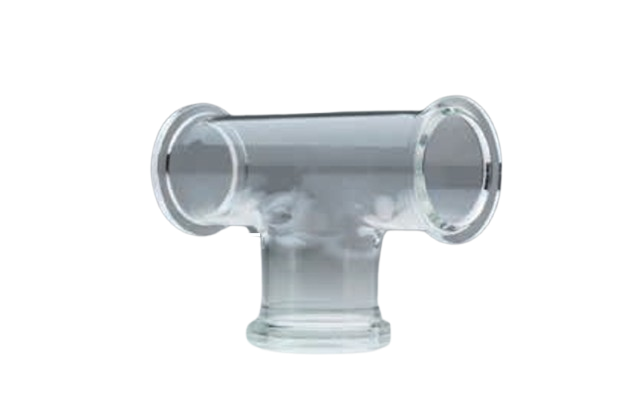

KF tees (glass)
產品詳細資料
Applications
- Inspectable flanges for process control, plasma and oven
- Insertion of (UV) laser light into reaction tube (quartz flange)
- UV protection with Duran® flanges
- Quartz for lowest UV absorption
- Vacuum up to 10E-9 mbar
- Temp. range of quartz up to 1000 degC / Duran® up to 450 degC
- Pressure up to 2 bar
- Minimum temperature -30 degC
- For ultra pure processes as ion implanters etc. (quartz)
| KF tees (glass) | |||||
| NW | A | B | |||
| 10 | 40 | 80 | |||
| 15 | 40 | 80 | |||
| 25 | 50 | 100 | |||
| 40 | 65 | 130 | |||
| 50 | 70 | 70 | |||
| 63 | 75 | 75 | |||
| Type NW | Duran® | Quartz | |||
| 10 | 33.010007.161.710 | 33.010008.161.810 | |||
| 16 | 33.016007.161.716 | 33.016008.161.816 | |||
| 25 | 33.025007.161.725 | 33.025008.161.825 | |||
| 40 | 33.040007.161.740 | 33.040008.161.840 | |||
| 50 | 33.050007.161.750 | 33.050008.161.850 | |||
| 63 | 33.063007.161.763 | 33.063008.161.863 |
