CeFiX® chain clamps
產品詳細資料
Applications
- Food & Beverage applications (stainless steel)
- Cryo applications (all versions)
- Heated use (up to 350 degC w/ nickel seals)
- Oven applications
- Radiation tolerant (RadHard™ applications)
- Especially for UHV applications
- Vacuum up to 10E-11 mbar
- Pressure up to 300 bar (steel with CeFiX® nickel seals)
- For antimagnetic requirements (stainless steel only)
| EVAC - CeFiX® chain clamps, UHV | |||||||||||
|
Torque [Nm] (seal mat) |
No. of | ||||||||||

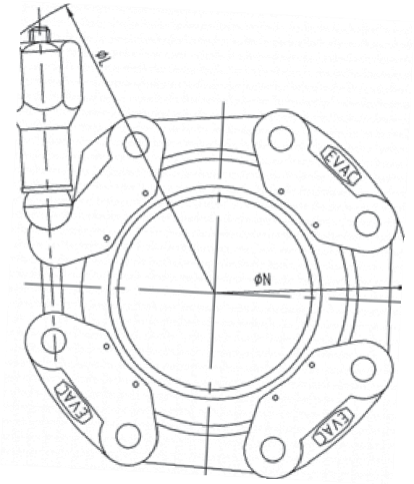

| NW | L | N | Alu | Copper | Nickel | links | |||||
| 16 | 110 | 60 | 2 | 3.5 | 6 | 3 | |||||
| 25 | 125 | 70 | 2.5 | 5 | 8 | 4 | |||||
| 40 | 140 | 85 | 3 | 6 | 10 | 5 | |||||
| 50 | 152 | 105 | 4.5 | 8.5 | 5 | ||||||
| 63 | 162 | 112 | 6 | 10 | 6* | ||||||
| * 2 catches | |||||||||||
| Type NW | Stainless steel | Nickel plated steel | |||||||
| 16 | 30.016005.151.416 | 30.016006.151.616 | |||||||
| 25 | 30.025005.151.425 | 30.025006.151.625 | |||||||
| 40 | 30.040005.151.441 | 30.040006.151.641 | |||||||
| 50 | 30.050005.151.450 | 30.050006.151.650 | |||||||
| 63 | 30.063005.156.463 | 30.063006.156.663 | |||||||
