Pneumatic In-line valve-Tube End

Pneumatic IN-line valve Specifications:

•Pneumatic angle valve with bellows
•Operation/actuator: air to open , spring to close
•Viton sealing bonnet
•Pressure vacuum range : ATM to 1 x 10-9 torr
•Bakeout temperature : 204°C max
•Material Exposed to Vacuum: Stainless Steel 304
•Operating temperature : -29∘to +204°C
•Power : 110VAC

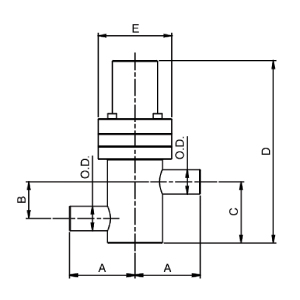

•Dimensions are in inches.

產品詳細資料

Part No.	Tube O.D.	A	B	C	D	E
O-AV-TE16-180-P	0.75	2	1.12	1.87	5.9	2.25
O-AV-TE25-180-P	1	1.88	1.37	2.25	6.14	2.25
O-AV-TE40-180-P	1.5	2.25	1.88	3.12	8.4	3
O-AV-TE50-180-P	2	3.25	2.62	4.12	11.04	3.5
