sTeRIc clamp chain clamps
產品詳細資料
Applications
- Applications: food, dairy, beverage, pharmaceutical and biotech
- Vacuum 10E-7 mbar for overpressure up to 10 bar
- Fully sterilizable
- Temperature range -20 up to 60 degC (standard)
- Temperature range -20 up to 150 degC (high-temperature)
- Temperature range -200 up to 200 degC (ultra-high-temperature)
- Other materials on request

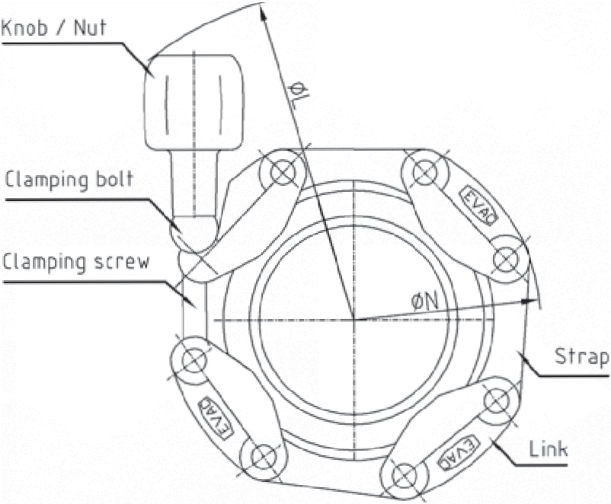

| sTeRIc clamp™ chain clamps | ||||
| Size | L | N | ||
| 8 | 120 | 55 | ||
| 10 | 120 | 55 | ||
| 15 | 122 | 58 | ||
| 20 | 127 | 66 | ||
| 25 | 127 | 66 | ||
| 32 | 141 | 81 | ||
| 40 | 141 | 81 | ||
| 50 | 156 | 99 | ||
| 65 | 166 | 111 | ||
| Size | Standard | High-temperature | Ultra-higt-temp | |||||
| 8 | 30.010010.951.810 | 30.010012.900.000 | 30.010094.900.000 | |||||
| 10 | 30.010010.951.810 | 30.010012.900.000 | 30.010094.900.000 | |||||
| 15 | 30.015010.951.820 | 30.015012.900.000 | 30.015094.900.000 | |||||
| 20 | 30.025010.951.825 | 30.020012.900.000 | 30.020094.900.000 | |||||
| 25 | 30.025010.951.825 | 30.025012.900.000 | 30.025094.900.000 | |||||
| 32 | 30.040010.951.840 | 30.040012.900.000 | 30.040094.900.000 | |||||
| 40 | 30.040010.951.840 | 30.040012.900.000 | 30.040094.900.000 | |||||
| 50 | 30.050010.951.850 | 30.050012.900.000 | 30.050094.900.000 | |||||
| 65 | 30.065010.951.865 | 30.065012.900.000 | 30.065094.900.000 | |||||
| 80 | 30.080010.951.880 | 30.080012.900.000 | 30.080094.900.000 | |||||
