Pneumateic angle valve ISO flange

Pneumatic angle valve - ISO flange Specifications :

•Pneumatic angle valve with bellows
•Operaton/actuator: air to open, air to close
•Viton sealing bonnet
•Pressure vacuum range : ATM to 1x10-9 torr
•Bakeout temperature :204°C max
•Material Exposed to Vacuum: Stainless Steel 304
•Operating Temperature: -29∘to +204°C
•Power: 110VAC

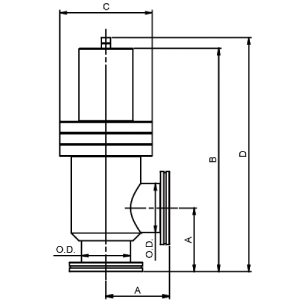

•Dimensions are in inches.

產品詳細資料

Part No.	Flange Ref.	Tube O.D.	A	B	C
O-AV-I63-90-P	ISO63	2.5	3.25	10.8	4
O-AV-I80-90-P	ISO80	3	3.5	11.21	4.5
O-AV-I100-90-P	ISO100	4	4.47	14.57	6.5
O-AV-I160-90-P	ISO160	6	6.26	20.28	9.25
O-AV-I200-90-P	ISO200	8	8.26	25.65	9.97
