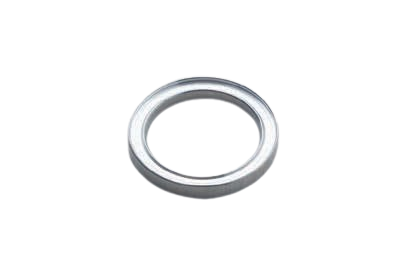

KF aluminium edge seals, outer center ring
產品詳細資料
Applications
- UHV applications up to 10E-11 mbar
- Pressurized applications up to 20 bar
- Cryo applications down to -270 degC
- Maximum temperature up to 150 degC
- Only for one time use
- Radiation tolerant and nuclear applications
- Cleanroom compatible

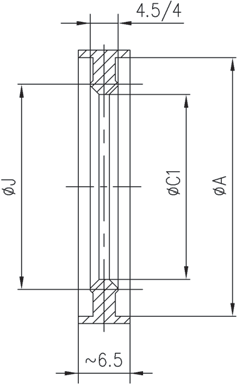

| KF aluminium edge seals, outer center ring | |||||||
| NW | A | C1 | J | ||||
| 10/16 | 30 | 20 | 23 | ||||
| 20/25 | 40 | 32 | 33 | ||||
| 32/40 | 55 | 45 | 48 | ||||
| 50 | 75 | 65 | 68 | ||||
| 63 | 87 | 77 | 80 | ||||
| Type | Aluminum | ||
| 10 or 16 | 34.016001.142.116-az | ||
| 20 or 25 | 34.025001.142.125-az | ||
| 32 or 40 | 34.040001.142.140-az | ||
| 50 | 34.050001.142.150-az | ||
| 63 | 34.063001.142.163-az |
