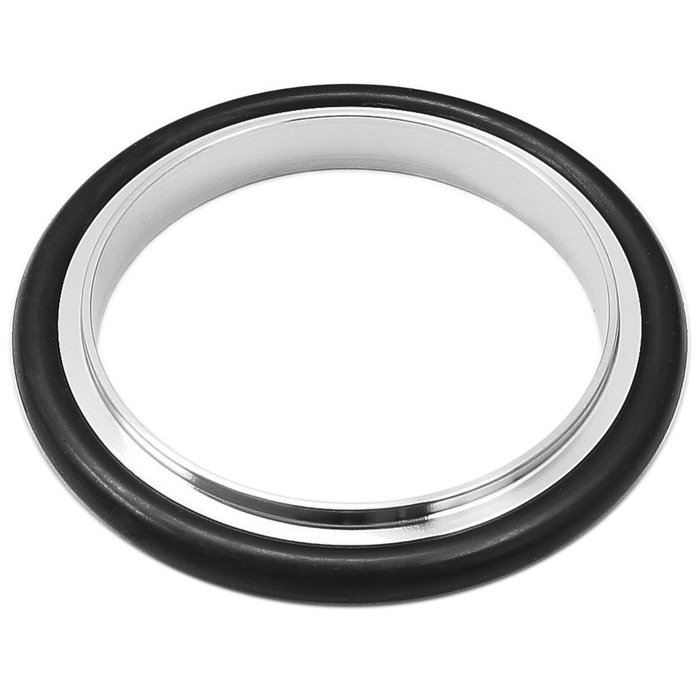

KF Adapter Centering ring with O-ring
產品詳細資料

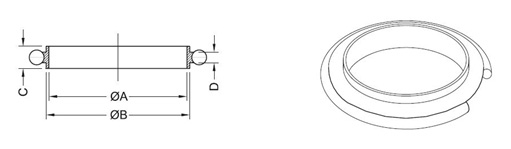

| Parts NO. | Flange Ref. | C/R Material | O-ring Material | O-ring size | A | B | C | D | E | F | |||||||||||
| 0-CN-N-10-16-VS | KF10-KF16 | 304 S.S. | VITON | AS-314 | 10 | 12 | 16 | 17 | 8 | 3.9 | |||||||||||
| 0-CN-N-20-25-VS | KF20-KF25 | 304 S.S. | VITON | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |||||||||||
| 0-CN-N-32-40-VS | KF32-KF40 | 304 S.S. | VITON | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 | |||||||||||
| 0-CN-N-10-16-VA | KF10-KF16 | Aluminum | VITON | AS-314 | 10 | 12 | 16 | 17 | 8 | 3.9 | |||||||||||
| 0-CN-N-20-25-VA | KF20-KF25 | Aluminum | VITON | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |||||||||||
| 0-CN-N-32-40-VA | KF32-KF40 | Aluminum | VITON | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 | |||||||||||
| 0-CN-N-10-16-NS | KF10-KF16 | 304 S.S. | NBQ | AS-314 | 10 | 12 | 16 | 1 | 8 | 3.9 | |||||||||||
| 0-CN-N-20-25-NS | KF20-KF25 | 304 S.S. | NBQ | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |||||||||||
| 0-CN-N-32-40-NS | KF32-KF40 | 304 S.S. | NBQ | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 | |||||||||||
| 0-CN-N-10-16-NA | KF10-KF16 | Aluminum | NBQ | AS-214 | 10 | 12 | 16 | 17 | 8 | 3.9 | |||||||||||
| 0-CN-N-20-25-NA | KF20-KF25 | Aluminum | NBQ | AS-320 | 20 | 22 | 25 | 26 | 8 | 3.9 | |||||||||||
| 0-CN-N-32-40-NA | KF32-KF40 | Aluminum | NBQ | AS-326 | 32 | 34 | 40 | 41 | 8 | 3.9 |
