CF Blank Flanges-Rotatable
產品詳細資料

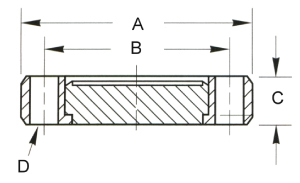

| Parts NO. | Flange Ref. | Material | A | B | C | D(*NO.) | Tapped bolt holes | ||||||||
| 0-BL-CR-16 | CF16 | 304 S.S. | 33.8 | 26.9 | 7.5 | 4.4*6 | - | ||||||||
| 0-BL-CR-35 | CF35 | 304 S.S. | 69.5 | 58.7 | 12.7 | 6.7*6 | - | ||||||||
| 0-BL-CR-63 | CF63 | 304 S.S. | 113.6 | 92.1 | 18 | 8.4*8 | - | ||||||||
| 0-BL-CR-100 | CF100 | 304 S.S. | 151.6 | 130.3 | 20 | 8.4*16 | - | ||||||||
| 0-BL-CR-150 | CF150 | 304 S.S. | 202.5 | 181 | 22 | 8.4*16 | - | ||||||||
| 0-BL-CR-200 | CF200 | 304 S.S. | 253.2 | 231.8 | 24.7 | 8.4*24 | - | ||||||||
| 0-BL-CR-250 | CF250 | 304 S.S. | 336.5 | 306.5 | 28.5 | 10.3*30 | - | ||||||||
| 0-BL-CR-300 | CF300 | 304 S.S. | 355.6 | 325.7 | 28.5 | 10.3*30 | - | ||||||||
| 0-BL-CR-350 | CF350 | 304 S.S. | 419.1 | 388.9 | 28.5 | 10.3*36 | - | ||||||||
| 0-BL-CR-16-S6 | CF16 | 316 S.S. | 33.8 | 26.9 | 7.5 | 4.4*6 | - | ||||||||
| 0-BL-CR-35-S6 | CF35 | 316 S.S. | 69.5 | 58.7 | 12.7 | 6.7*6 | - | ||||||||
| 0-BL-CR-63-S6 | CF63 | 316 S.S. | 113.6 | 92.1 | 18 | 8.4*8 | - | ||||||||
| 0-BL-CR-100-S6 | CF100 | 316 S.S. | 151.6 | 130.3 | 20 | 8.4*16 | - | ||||||||
| 0-BL-CR-150-S6 | CF150 | 316 S.S. | 202.5 | 181 | 22 | 8.4*16 | - | ||||||||
| 0-BL-CR-200-S6 | CF200 | 316 S.S. | 253.2 | 231.8 | 24.7 | 8.4*24 | - | ||||||||
| 0-BL-CR-250-S6 | CF250 | 316 S.S. | 336.5 | 306.5 | 28.5 | 10.3*30 | - | ||||||||
| 0-BL-CR-300-S6 | CF300 | 316 S.S. | 355.6 | 325.7 | 28.5 | 10.3*30 | - | ||||||||
| 0-BL-CR-350-S6 | CF350 | 316 S.S. | 419.1 | 388.9 | 28.5 | 10.3*36 | - | ||||||||
| 0-BL-CR-16-T | CF16 | 304 S.S. | 33.8 | 26.9 | 7.5 | M4*6 | Tapped bolt holes | ||||||||
| 0-BL-CR-35-T | CF35 | 304 S.S. | 69.5 | 58.7 | 12.7 | M6*6 | Tapped bolt holes | ||||||||
| 0-BL-CR-63-T | CF63 | 304 S.S. | 113.6 | 92.1 | 18 | M8*8 | Tapped bolt holes | ||||||||
| 0-BL-CR-100-T | CF100 | 304 S.S. | 151.6 | 130.3 | 20 | M8*16 | Tapped bolt holes | ||||||||
| 0-BL-CR-150-T | CF150 | 304 S.S. | 202.5 | 181 | 22 | M8*16 | Tapped bolt holes | ||||||||
| 0-BL-CR-200-T | CF200 | 304 S.S. | 253.2 | 231.8 | 24.7 | M8*24 | Tapped bolt holes | ||||||||
| 0-BL-CR-250-T | CF250 | 304 S.S. | 336.5 | 306.5 | 28.5 | M10*30 | Tapped bolt holes | ||||||||
| 0-BL-CR-300-T | CF300 | 304 S.S. | 355.6 | 325.7 | 28.5 | M10*30 | Tapped bolt holes | ||||||||
| 0-BL-CR-350-T | CF350 | 304 S.S. | 419.1 | 388.9 | 28.5 | M13*36 | Tapped bolt holes | ||||||||
| 0-BL-CR-16-T-S6 | CF16 | 316 S.S. | 33.8 | 26.9 | 7.5 | M4*6 | Tapped bolt holes | ||||||||
| 0-BL-CR-35-T-S6 | CF35 | 316 S.S. | 69.5 | 58.7 | 12.7 | M6*6 | Tapped bolt holes | ||||||||
| 0-BL-CR-63-T-S6 | CF63 | 316 S.S. | 113.6 | 92.1 | 18 | M8*8 | Tapped bolt holes | ||||||||
| 0-BL-CR-100-T-S6 | CF100 | 316 S.S. | 151.6 | 130.3 | 20 | M8*16 | Tapped bolt holes | ||||||||
| 0-BL-CR-150-T-S6 | CF150 | 316 S.S. | 202.5 | 181 | 22 | M8*16 | Tapped bolt holes | ||||||||
| 0-BL-CR-200-T-S6 | CF200 | 316 S.S. | 253.2 | 231.8 | 24.7 | M8*24 | Tapped bolt holes | ||||||||
| 0-BL-CR-250-T-S6 | CF200 | 316 S.S. | 336.5 | 306.5 | 28.5 | M10*30 | Tapped bolt holes | ||||||||
| 0-BL-CR-300-T-S6 | CF300 | 316 S.S. | 355.6 | 325.7 | 28.5 | M10*30 | Tapped bolt holes | ||||||||
| 0-BL-CR-350-T-S6 | CF350 | 316 S.S. | 419.1 | 388.9 | 28.5 | M13*36 | Tapped bolt holes |
