Pneumatic straight-through valve- Tube End

Pneumatic straight-through valve Specifications:

•Pneumatic angle valve with bellows
•Operation/actuator:0.75"~2" air to open, spring to close
•Over 2" :air to open, air to close
•Viton sealing bonnet
•Pressure vacuum range: ATM to 1 x 10-9 torr
•Bakeout temperature : 204°C max
•Material Exposed to Vacuum: Stainless Steel 304
•Operating Temperature:-29∘to +204°C
•Power: 110VAC
•Dimensions are in inches.

產品詳細資料

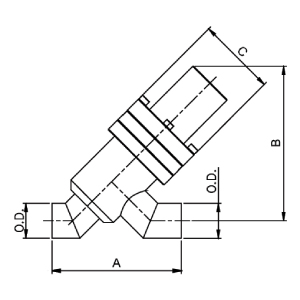

Part No.	Tube O.D.	A	B	C
O-AV-TE16-ST-P	0.75	3.7	4.15	2.25
O-AV-TE25-ST-P	1	3.9	4.09	2.25
O-AV-TE40-ST-P	1.5	4.82	5.61	3
O-AV-TE50-ST-P	2	6.7	7.15	3.5
