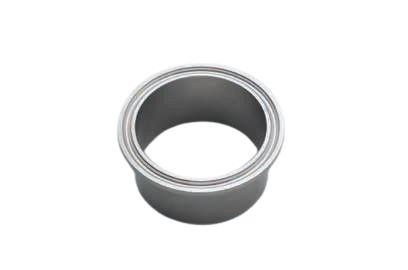

sTeRIc Clamp flange, ISO 2852 with tube ISO
產品詳細資料
Applications
- Applications: food, dairy, beverage, pharmaceutical and biotech
- Vacuum 10E-7 mbar for overpressure up to 10 bar
- Fully sterilizable (CIP-conform)
- Extreme fine surface rougness for ultra clean applications
- Wide temperature range -200…+200 degC (special seals / clamps)
- Non standard stub length on request

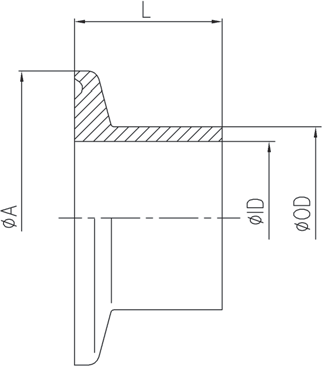

| sTeRIc Clamp™ flange, ISO 2852 with tube ISO 1127 | |||||||
| Size | A | DN*/OD | ID | L | |||
| 8 | 25 | 13.5 | 10.3 | 28.5 | |||
| 10 | 25 | 17.2 | 14 | 28.5 | |||
| 15 | 34 | 21.3 | 18.1 | 21.6 | |||
| 20 | 50.5 | 26.9 | 22.9 | 21.6 | |||
| 25 | 50.5 | 33.7 | 28.7 | 21.6 | |||
| 32 | 64 | 42.4 | 38.4 | 21.6 | |||
| 40 | 64 | 48.3 | 44.3 | 21.6 | |||
| 50 | 77.5 | 60.3 | 56.3 | 21.6 | |||
| 65 | 91 | 76.1 | 72.1 | 21.6 | |||
| 80 | 106 | 88.9 | 84.3 | 21.6 | |||
| *Diameter Nominal | |||||||
| Size | Stainless steel | ||
| 8 | 32.008005.951.308 | ||
| 10 | 32.010005.951.310 | ||
| 15 | 32.015005.951.315 | ||
| 20 | 32.020005.951.320 | ||
| 25 | 32.025005.951.325 | ||
| 32 | 32.032005.951.332 | ||
| 40 | 32.040005.951.340 | ||
| 50 | 32.050005.951.350 | ||
| 65 | 32.065005.951.365 | ||
| 80 | 32.080005.951.380 |
