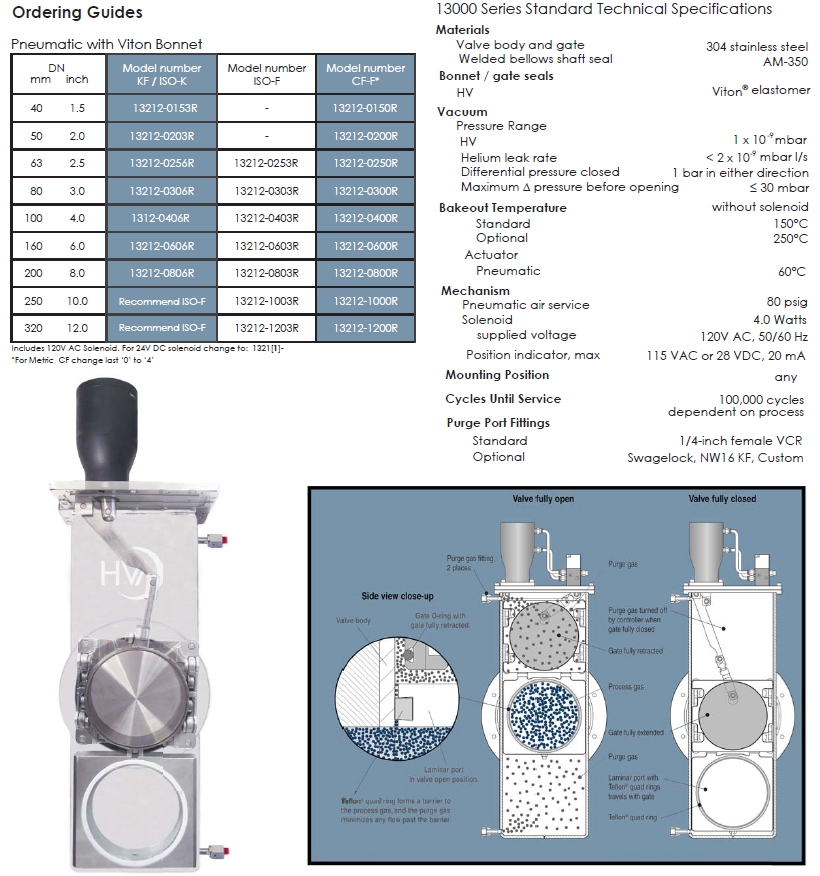

13000 Series SUS Laminar Flow Gate Valves

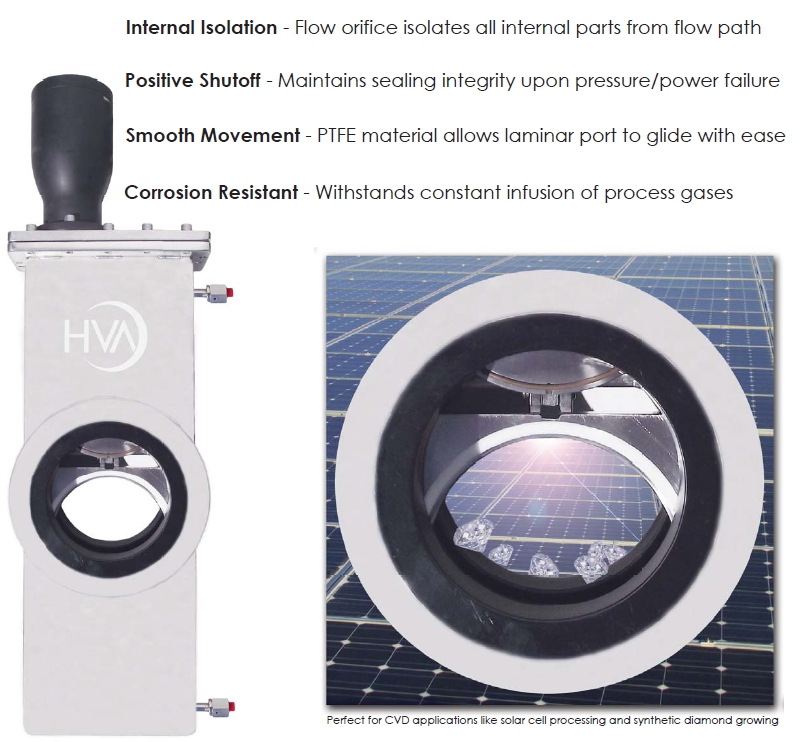

The HVA 13000 Series Laminar Flow Gate Valve features a laminar flow port orifice that effectively seals the valve mechanism from the gas stream. For additional protection, purge ports are installed in both the upper and lower body areas to allow an insert gas flow to prevent intrusion of the process gas into these areas. Extensive semiconductor applications have proven these valves to be a valuable asset in process systems. Laminar flow valves may be used in etching, CVD and any other process that uses highly corrosive gases which may be damaging to other valves.
