Access Door
Access Doors

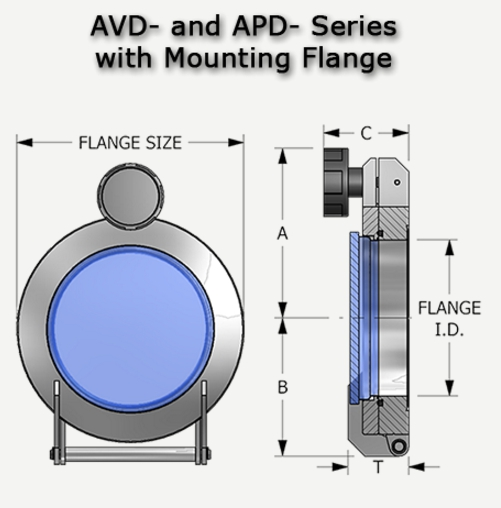

Access Doors are offered in two configurations, one with a mounting flange to bolt to your flanged port and one without a mounting flange for direct mounting to an existing flange.

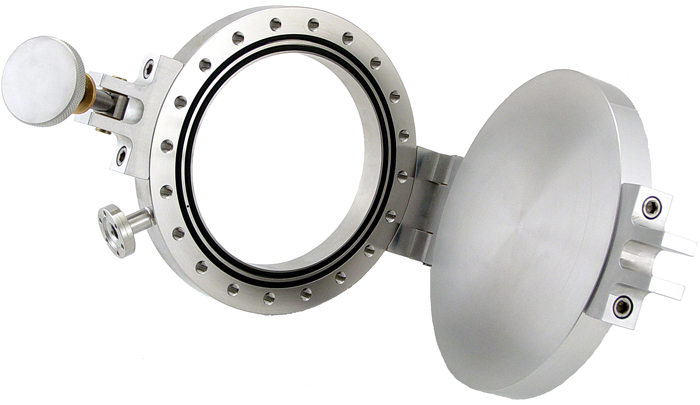

The flange to which the door is hinged mates with an identical flange on the chamber or load lock. A captured Viton® O-ring in the face of the door provides the door seal when it is closed and locked.
| P/N | Size | Flange OD | A | B | C | T |
| AVD-275 | CF35 | 2.75" | 2.24" | 2.32" | 2.05" | 1.00" |
| AVD-450 | CF63 | 4.50" | 2.92" | 3.25" | 2.07" | 1.36" |
| AVD-600 | CF100 | 6.00" | 4.95" | 4.12" | 2.36" | 1.56" |
| AVD-800 | CF150 | 8.00" | 5.93" | 4.81" | 2.54" | 1.74" |
| AVD-1000 | CF200 | 10.00" | 7.00" | 5.73" | 2.74" | 1.94" |
| P/N | Size | Flange OD | A | B | C | T |
| APD-275 | CF35 | 2.75" | 2.24" | 2.32" | 2.05" | 1.00" |
| APD-450 | CF63 | 4.50" | 2.92" | 3.25" | 2.07" | 1.36" |
| APD-600 | CF100 | 6.00" | 4.95" | 4.12" | 2.36" | 1.56" |
| APD-800 | CF150 | 8.00" | 5.93" | 4.81" | 2.54" | 1.74" |
| APD-1000 | CF200 | 10.00" | 7.00" | 5.73" | 2.74" | 1.94" |
