Accu-Port Manual Tilt Stage

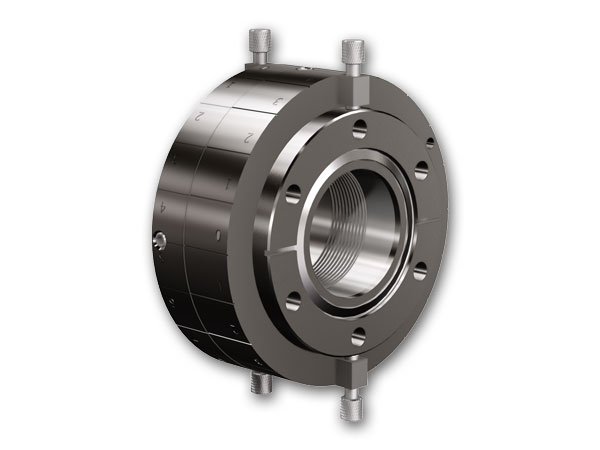

ACCU-PORT® Manual Tilt Motion Stage
When used in conjunction with one of Huntington’s many single or dual axis Stages, the ACCU-PORT® adds tilt motion to Z-Axis or X-Y-Z Axis Manipulators.
All Dimensions: inch (mm).
| Flange OD | Bellows ID | Angular Motion | Included Angle | “D” | Part Number | ||
|---|---|---|---|---|---|---|---|
| 1-1/3″ | 0.50 | 10° | 20° | 1.00 | VF-175-133 | ||
| 2-3/4″ | 1.39 | 2° | 4° | 1.67 | VF-175-2 | ||
| 2-3/4″ | 1.39 | 10° | 20° | 1.42 | VF-175-10 | ||
