Formed Bellows
Formed Bellows
* 316 S.S. available upon request.
* Different length available upon request.

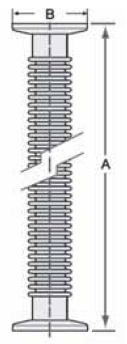

Part No. | Size | Materials | A | B | |
---|---|---|---|---|---|
BL-N-16-250 | KF16 | 304 S.S. | 250 | 30 | |
BL-N-16-500 | KF16 | 304 S.S. | 500 | 30 | |
BL-N-16-750 | KF16 | 304 S.S. | 750 | 30 | |
BL-N-16-1000 | KF16 | 304 S.S. | 1000 | 30 | |
BL-N-25-250 | KF25 | 304 S.S. | 250 | 40 | |
BL-N-25-500 | KF25 | 304 S.S. | 500 | 40 | |
BL-N-25-750 | KF25 | 304 S.S. | 750 | 40 | |
BL-N-25-1000 | KF25 | 304 S.S. | 1000 | 40 | |
BL-N-40-250 | KF40 | 304 S.S. | 250 | 55 | |
BL-N-40-500 | KF40 | 304 S.S. | 500 | 55 | |
BL-N-40-750 | KF40 | 304 S.S. | 750 | 55 | |
BL-N-40-1000 | KF40 | 304 S.S. | 1000 | 55 | |
BL-N-50-250 | KF50 | 304 S.S. | 250 | 75 | |
BL-N-50-500 | KF50 | 304 S.S. | 500 | 75 | |
BL-N-50-750 | KF50 | 304 S.S. | 750 | 75 | |
BL-N-50-1000 | KF50 | 304 S.S. | 1000 | 75 |
Part No. | Size | Materials | A | B | |
---|---|---|---|---|---|
BL-I-63-250 | ISO63 | 304 S.S. | 250 | 95 | |
BL-I-63-500 | ISO63 | 304 S.S. | 500 | 95 | |
BL-I-63-750 | ISO63 | 304 S.S. | 750 | 95 | |
BL-I-63-1000 | ISO63 | 304 S.S. | 1000 | 95 | |
BL-I-80-250 | ISO80 | 304 S.S. | 250 | 110 | |
BL-I-80-500 | ISO80 | 304 S.S. | 500 | 110 | |
BL-I-80-750 | ISO80 | 304 S.S. | 750 | 110 | |
BL-I-80-1000 | ISO80 | 304 S.S. | 1000 | 110 | |
BL-I-100-250 | ISO100 | 304 S.S. | 250 | 130 | |
BL-I-100-500 | ISO100 | 304 S.S. | 500 | 130 | |
BL-I-100-750 | ISO100 | 304 S.S. | 750 | 130 | |
BL-I-100-1000 | ISO100 | 304 S.S. | 1000 | 130 |
Part No. | Size | Materials | A | B | |
---|---|---|---|---|---|
BL-C-16-250 | CF16 | 304 S.S. | 250 | 33.8 | |
BL-C-16-500 | CF16 | 304 S.S. | 500 | 33.8 | |
BL-C-16-750 | CF16 | 304 S.S. | 750 | 33.8 | |
BL-C-16-1000 | CF16 | 304 S.S. | 1000 | 33.8 | |
BL-C-35-250 | CF35 | 304 S.S. | 250 | 69.5 | |
BL-C-35-500 | CF35 | 304 S.S. | 500 | 69.5 | |
BL-C-35-750 | CF35 | 304 S.S. | 750 | 69.5 | |
BL-C-35-1000 | CF35 | 304 S.S. | 1000 | 69.5 | |
BL-C-63-250 | CF63 | 304 S.S. | 250 | 130 | |
BL-C-63-500 | CF63 | 304 S.S. | 500 | 130 | |
BL-C-63-750 | CF63 | 304 S.S. | 750 | 130 | |
BL-C-63-1000 | CF63 | 304 S.S. | 1000 | 130 |
Part No. | Size | Materials | A | B | |
---|---|---|---|---|---|
BL-CR-16-250 | CF16 | 304 S.S. | 250 | 33.8 | |
BL-CR-16-500 | CF16 | 304 S.S. | 500 | 33.8 | |
BL-CR-16-750 | CF16 | 304 S.S. | 750 | 33.8 | |
BL-CR-16-1000 | CF16 | 304 S.S. | 1000 | 33.8 | |
BL-CR-35-250 | CF35 | 304 S.S. | 250 | 69.5 | |
BL-CR-35-500 | CF35 | 304 S.S. | 500 | 69.5 | |
BL-CR-35-750 | CF35 | 304 S.S. | 750 | 69.5 | |
BL-CR-35-1000 | CF35 | 304 S.S. | 1000 | 69.5 | |
BL-CR-63-250 | CF63 | 304 S.S. | 250 | 130 | |
BL-CR-63-500 | CF63 | 304 S.S. | 500 | 130 | |
BL-CR-63-750 | CF63 | 304 S.S. | 750 | 130 | |
BL-CR-63-1000 | CF63 | 304 S.S. | 1000 | 130 |
