| Manual Valve Specifications: |
| ☆ |
Manual Operation |
| ☆ |
Body materials : SUS 304 |
| ☆ |
Welded bellows: AM350 |
| ☆ |
Bonnet/ Gate seal: FKM O-ring |
| ☆ |
Vacuum pressure range: 1X10-8 Torr |
| ☆ |
He Leak rate: 1X10-9 Torr l/s |
| ☆ |
Max. bakeout temperature: 200℃ |
Part numbers & Dimensions (inches):
 |

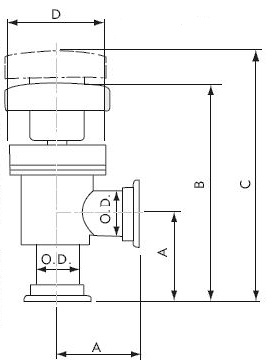

Manual Right Angle Valve with NW/KF Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
| AV-KF16-90-M |
NW/KF16 |
0.75" |
2.15" |
5.41" |
6.15" |
2.25" |
| AV-KF25-90-M |
NW/KF25 |
1.00" |
2.03" |
5.12" |
5.85" |
2.25" |
| AV-KF40-90-M |
NW/KF40 |
1.50" |
2.40" |
6.43" |
7.65" |
3.00" |
| AV-KF50-90-M |
NW/KF50 |
2.00" |
3.40" |
8.14" |
9.91" |
3.50" |
|
 |
 |
Manual Right Angle Valve with ISO Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
| AV-I63-90-M |
ISO63 |
2.50" |
3.25" |
8.60" |
11.20" |
4.00" |
| AV-I80-90-M |
ISO80 |
3.00" |
3.50" |
8.92" |
11.28" |
4.50" |
|
 |
 |
Manual Right Angle Valve with CF Flanges (rotatable)
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
| AV-CR16-90-M |
CF16-R |
0.75" |
2.50" |
5.70" |
6.50" |
2.25" |
| AV-CR35-90-M |
CF35-R |
1.50" |
2.50" |
6.50" |
7.78" |
3.00" |
| AV-CR63-90-M |
CF63-R |
2.50" |
3.38" |
8.75" |
10.42" |
3.92" |
|
|
 |

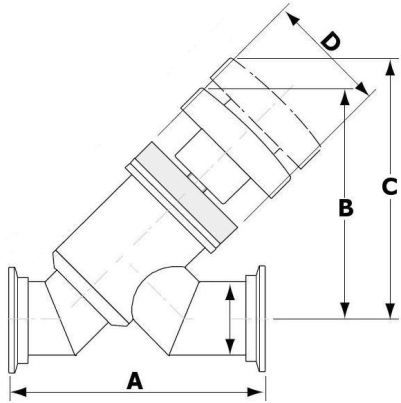

Manual Straight-Through Valve with NW/KF Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
| AV-KF16-ST-M |
NW/KF16 |
0.75" |
4.00" |
3.91" |
4.43" |
2.25" |
| AV-KF25-ST-M |
NW/KF25 |
1.00" |
4.20" |
3.82" |
4.34" |
2.25" |
| AV-KF40-ST-M |
NW/KF40 |
1.50" |
5.12" |
5.31" |
6.18" |
3.00" |
| AV-KF50-ST-M |
NW/KF50 |
2.00" |
7.00" |
5.31" |
6.55" |
3.50" |
|
 |
 |
Manual Straight-Through Valve with CF Flanges (rotatable)
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
| AV-CR16-ST-M |
CF16-R |
0.75" |
4.70" |
3.90" |
4.43" |
2.25" |
| AV-CR35-ST-M |
CF35-R |
1.50" |
5.24" |
5.30" |
6.55" |
3.00" |
|
|
 |

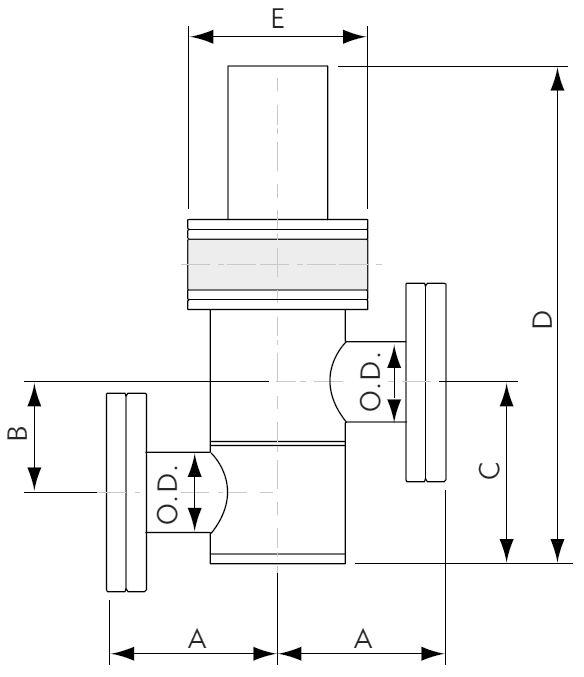

Manual In-Line Valve with NW/KF Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
E |
F |
| AV-KF16-180-M |
NW/KF16 |
0.75" |
2.15" |
1.12" |
1.87" |
5.12" |
5.86" |
2.25" |
| AV-KF25-180-M |
NW/KF25 |
1.00" |
2.03" |
1.37" |
2.25" |
5.33" |
6.08" |
2.25" |
| AV-KF40-180-M |
NW/KF40 |
1.50" |
2.40" |
1.88" |
3.12" |
7.15" |
8.37" |
3.00" |
| AV-KF50-180-M |
NW/KF50 |
2.00" |
3.40" |
2.62" |
4.12" |
8.86" |
10.63" |
3.50" |
|
 |
 |
Manual In-Line Valve with CF Flanges (rotatable)
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
E |
F |
| AV-CR16-180-M |
CF16-R |
0.75" |
2.50" |
1.13" |
1.87" |
5.09" |
5.86" |
2.25" |
| AV-CR35-180-M |
CF35-R |
1.50" |
2.46" |
1.88" |
3.12" |
7.15" |
8.44" |
3.00" |
|
 |
| Pneumatic Valve Specifications: |
| ☆ |
Operation: Normal-close, air to open, spring to close * |
| ☆ |
Body materials : SUS 304 |
| ☆ |
Welded bellows: AM350 |
| ☆ |
Bonnet/ Gate seal: FKM O-ring |
| ☆ |
Vacuum pressure range: 1X10-8 Torr |
| ☆ |
He Leak rate: 1X10-9 Torr l/s |
| ☆ |
Max. bakeout temperature: 200℃ |
| ☆ |
Solenoid valve option is available upon request |
| * |
Double-acting cylinder option is available upon request |
Part numbers & Dimensions (inches):
 |

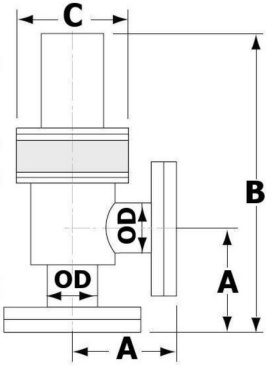

Pneumatic Right Angle Valve with NW/KF Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
| AV-KF16-90-P |
NW/KF16 |
0.75" |
2.15" |
6.18" |
2.25" |
| AV-KF25-90-P |
NW/KF25 |
1.00" |
2.03" |
5.92" |
2.25" |
| AV-KF40-90-P |
NW/KF40 |
1.50" |
2.40" |
7.68" |
3.00" |
| AV-KF50-90-P |
NW/KF50 |
2.00" |
3.40" |
10.33" |
3.50" |
|
 |
 |
Pneumatic Right Angle Valve with ISO Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
| AV-I63-90-P |
ISO63 |
2.50" |
3.25" |
10.80" |
4.00" |
| AV-I80-90-P |
ISO80 |
3.00" |
3.50" |
11.21" |
4.50" |
| AV-I100-90-P |
ISO100 |
4.00" |
4.47" |
14.57" |
6.50" |
|
 |
 |

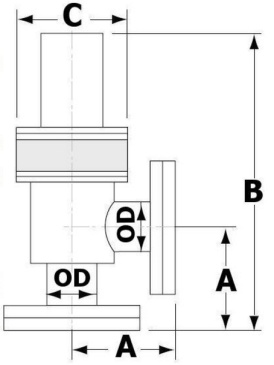

Pneumatic Right Angle Valve with CF Flanges (rotatable)
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
| AV-CR16-90-P |
CF16-R |
0.75" |
2.50" |
6.35" |
2.25" |
| AV-CR35-90-P |
CF35-R |
1.50" |
2.50" |
7.73" |
3.00" |
| AV-CR63-90-P |
CF63-R |
2.50" |
3.38" |
10.48" |
4.00" |
|
 |
 |

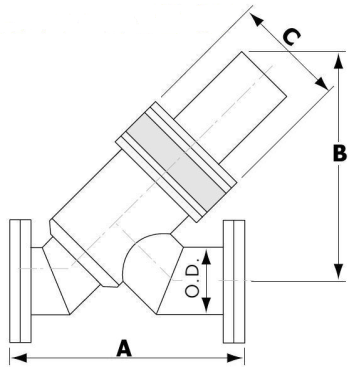

Pneumatic Straight-Through Valve with NW/KF Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
| AV-KF16-90-ST-P |
NW/KF16 |
0.75" |
4.00" |
4.15" |
2.25" |
| AV-KF25-90-ST-P |
NW/KF25 |
1.00" |
4.20" |
4.09" |
2.25" |
| AV-KF40-90-ST-P |
NW/KF40 |
1.50" |
5.12" |
5.61" |
3.00" |
| AV-KF50-90-ST-P |
NW/KF50 |
2.00" |
7.00" |
7.15" |
3.50" |
|
 |
 |
Pneumatic Straight-Through Valve with CF Flanges (rotatable)
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
| AV-CR16-90-ST-P |
CF16-R |
0.75" |
4.70" |
4.15" |
2.25" |
| AV-CR35-90-ST-P |
CF35-R |
1.50" |
5.24" |
5.61" |
3.00" |
| AV-CR63-90-ST-P |
CF63-R |
2.50" |
8.25" |
7.96" |
4.00" |
|
 |
 |

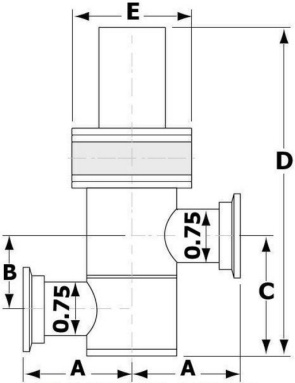

Pneumatic In-Line Valve with NW/KF Flanges
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
E |
| AV-KF16-180-P |
NW/KF16 |
0.75" |
2.15" |
1.12" |
1.87" |
5.90" |
2.25" |
| AV-KF25-180-P |
NW/KF25 |
1.00" |
2.03" |
1.37" |
2.25" |
6.14" |
2.25" |
| AV-KF40-180-P |
NW/KF40 |
1.50" |
2.40" |
1.88" |
3.12" |
8.40" |
3.00" |
| AV-KF50-180-P |
NW/KF50 |
2.00" |
3.40" |
2.62" |
4.12" |
11.04" |
3.50" |
|
 |
 |
Pneumatic In-Line Valve with CF Flanges (rotatable)
| Part No. |
Flange |
Tube O.D. |
A |
B |
C |
D |
E |
| AV-CR16-180-P |
CF16-R |
0.75" |
2.50" |
1.13" |
1.87" |
5.90" |
2.25" |
| AV-CR35-180-P |
CF35-R |
1.50" |
2.46" |
1.88" |
3.12" |
8.40" |
3.00" |
|
 |
